Lesson 16: Add and Design Member Selection Component

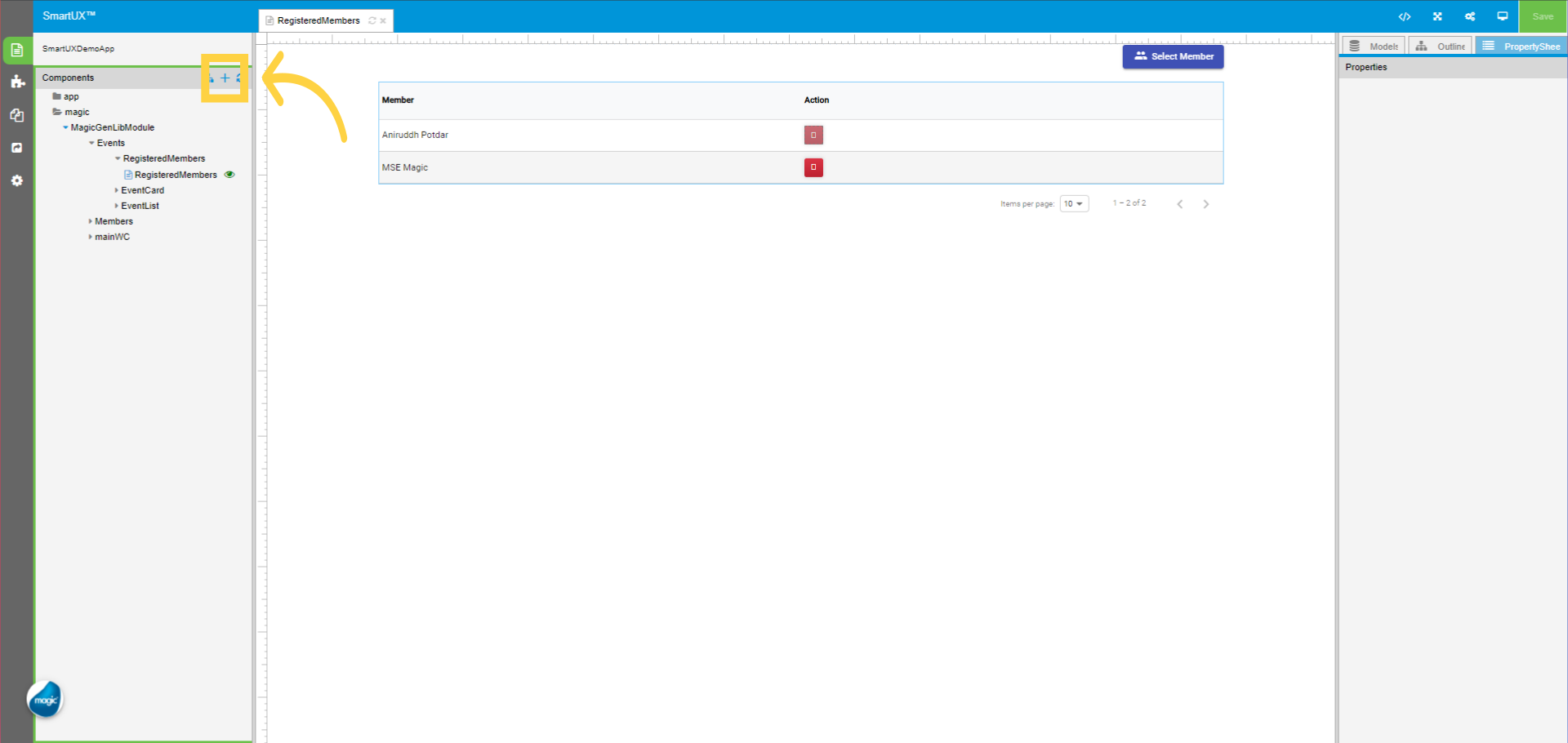

• Click on the Add Component.
• This will open a Select Program window with a List of Web Client Programs from Magic xpa.

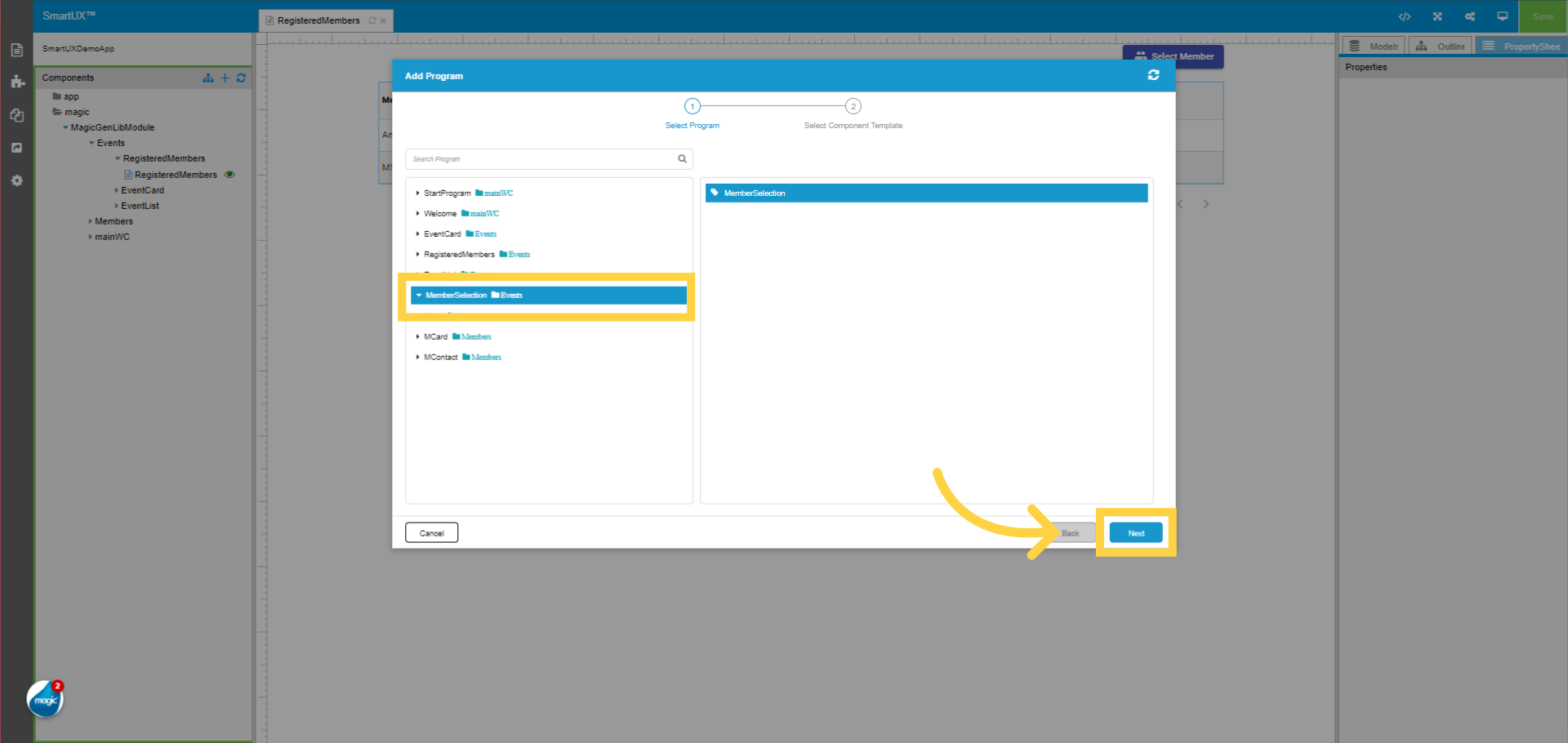

• As we are adding a component for Member Selection, Select the MemberSelection Program.
• Click on the Next button.
• This will take you to the Component Template screen.

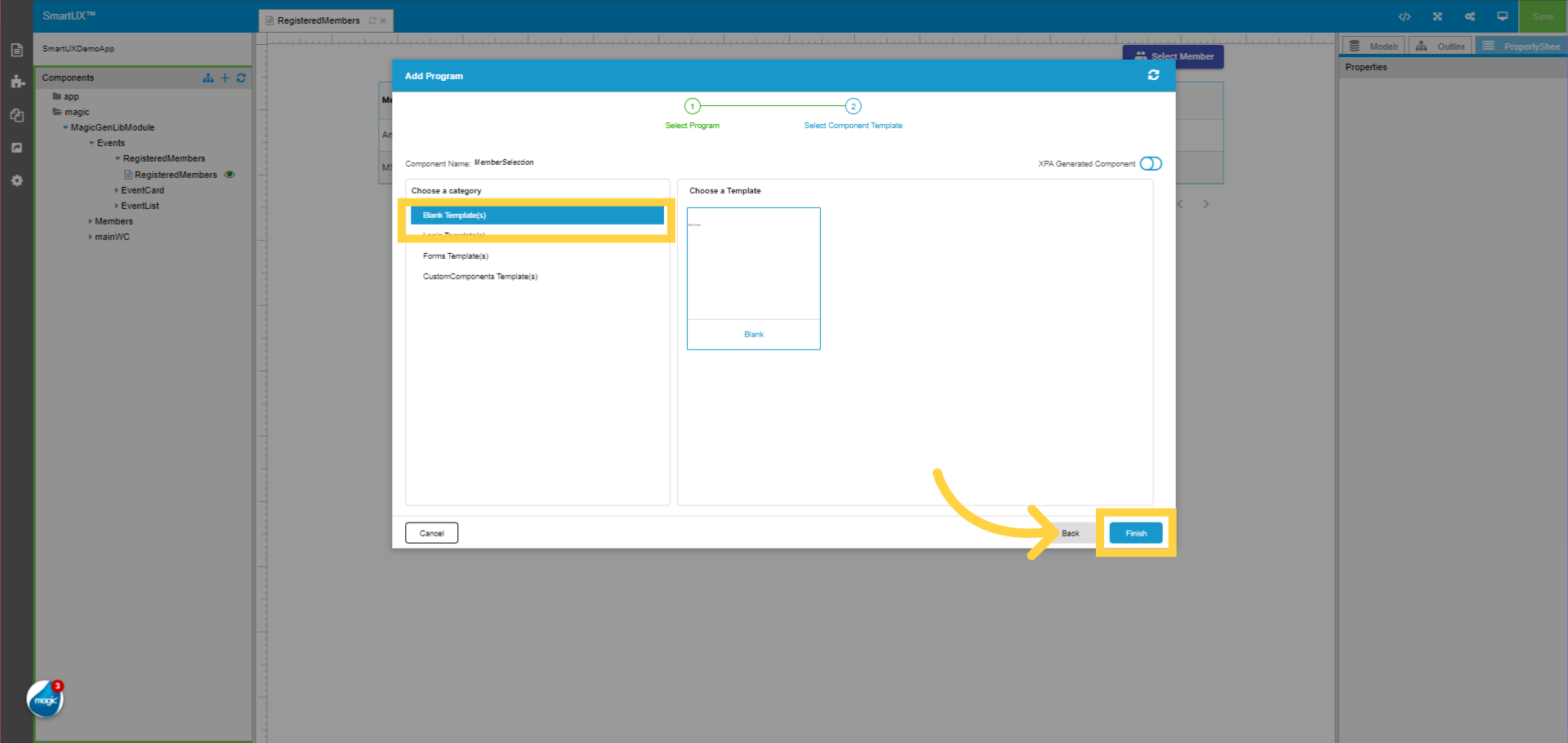

• Select Blank Template as the Component Template for the “MemberSelection” program.
• Click on the Finish button.

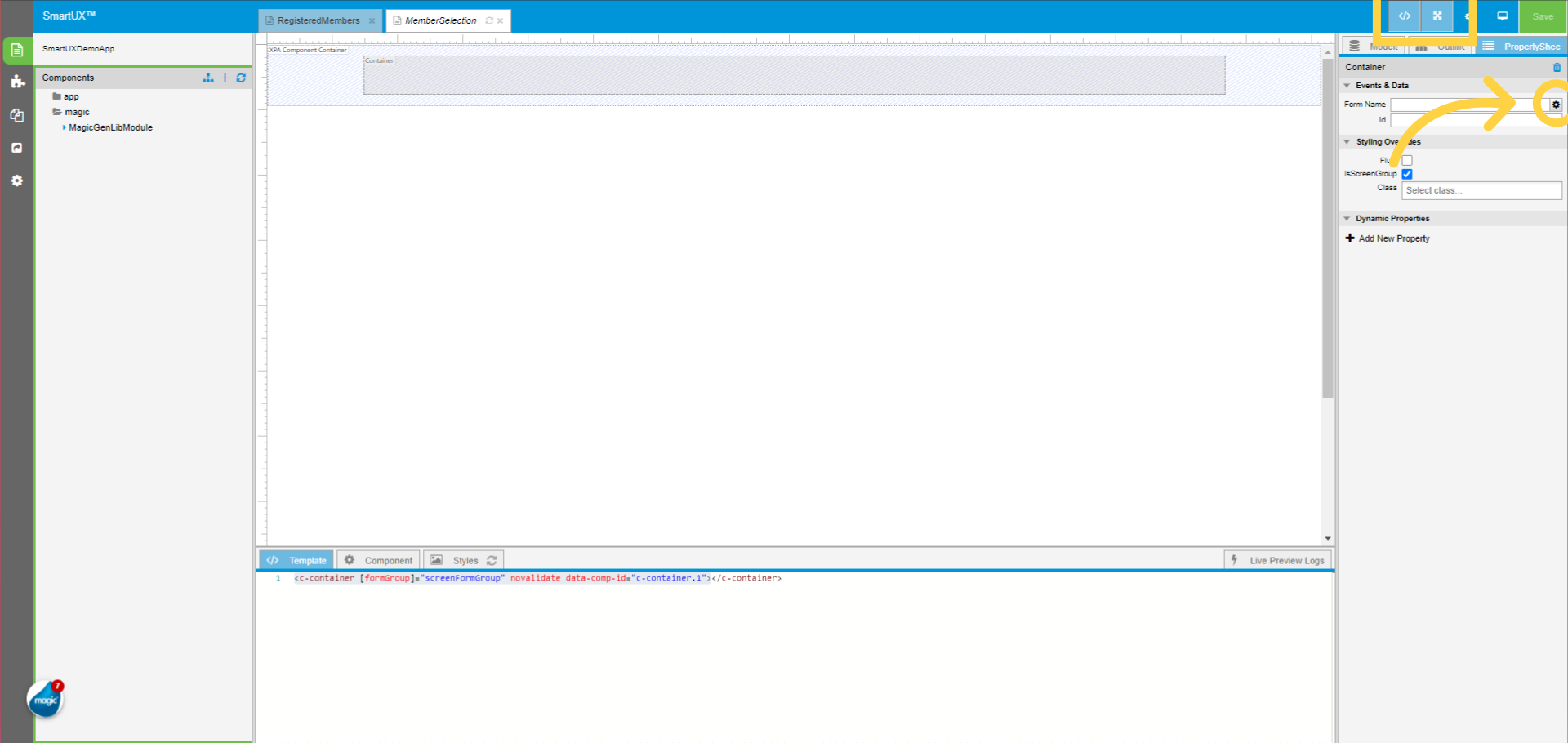

• Click on the Expanded View icon to enable Expanded View.
• Click on the View Code icon to open a section below the Canvas to see the HTML source code of dropped Widgets.
• Select the Container widget on the Canvas.
• Click on the gear icon associated with the Form Name property for mapping.

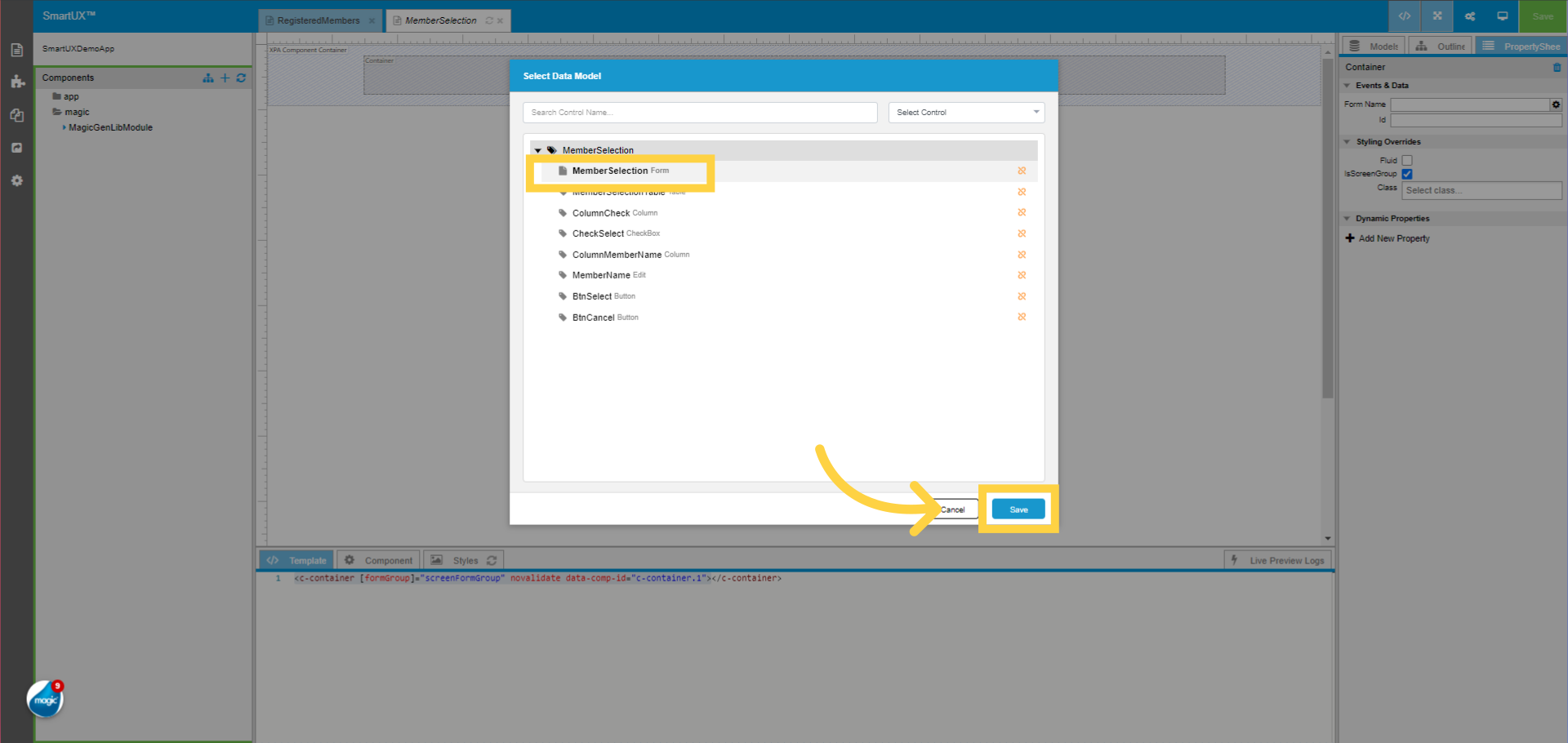

• Here on the Select Data Model window, select “MemberSelection” Form Data Model.
• Click on the Save button to map.

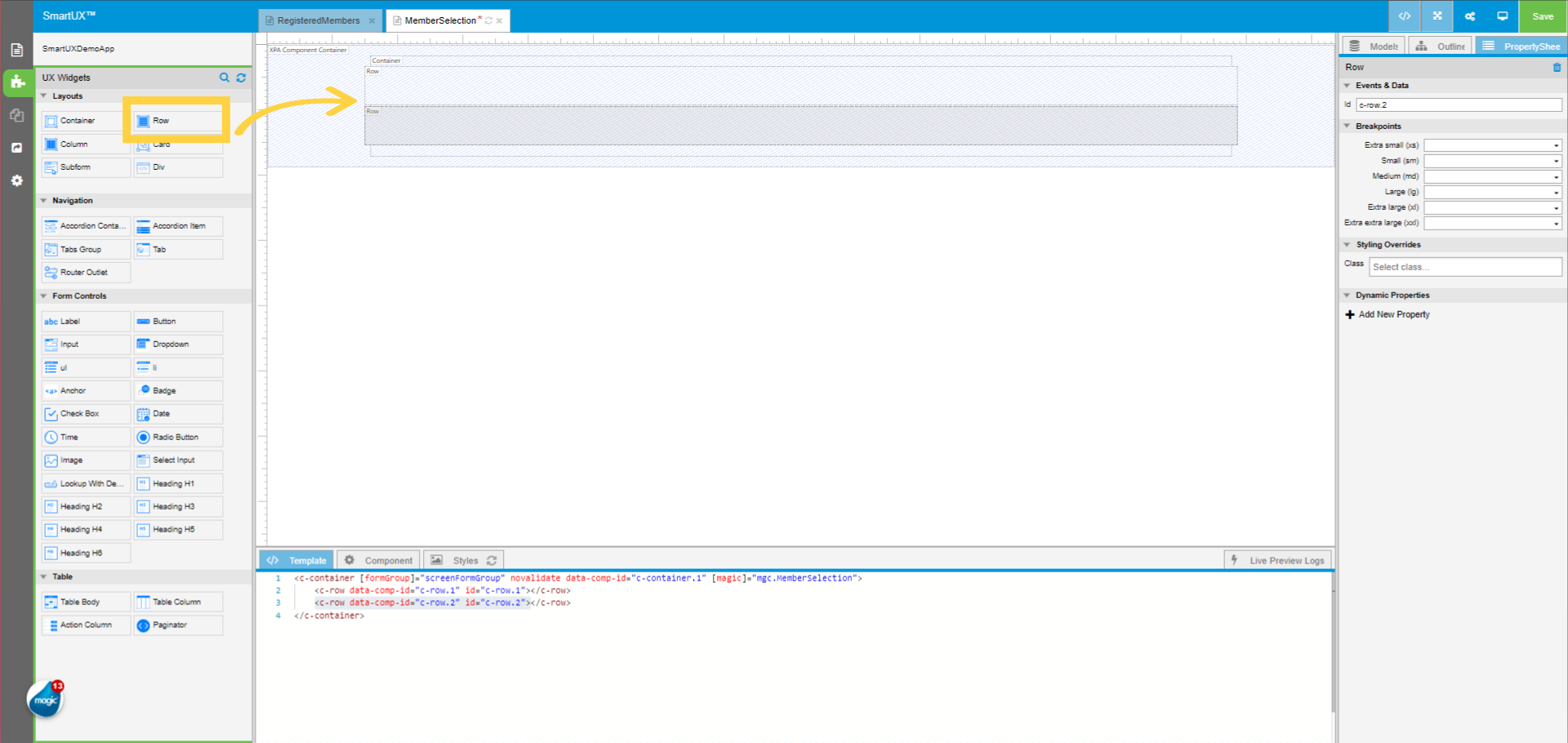

• Drag and drop two Row widgets one after another inside the Form Container.

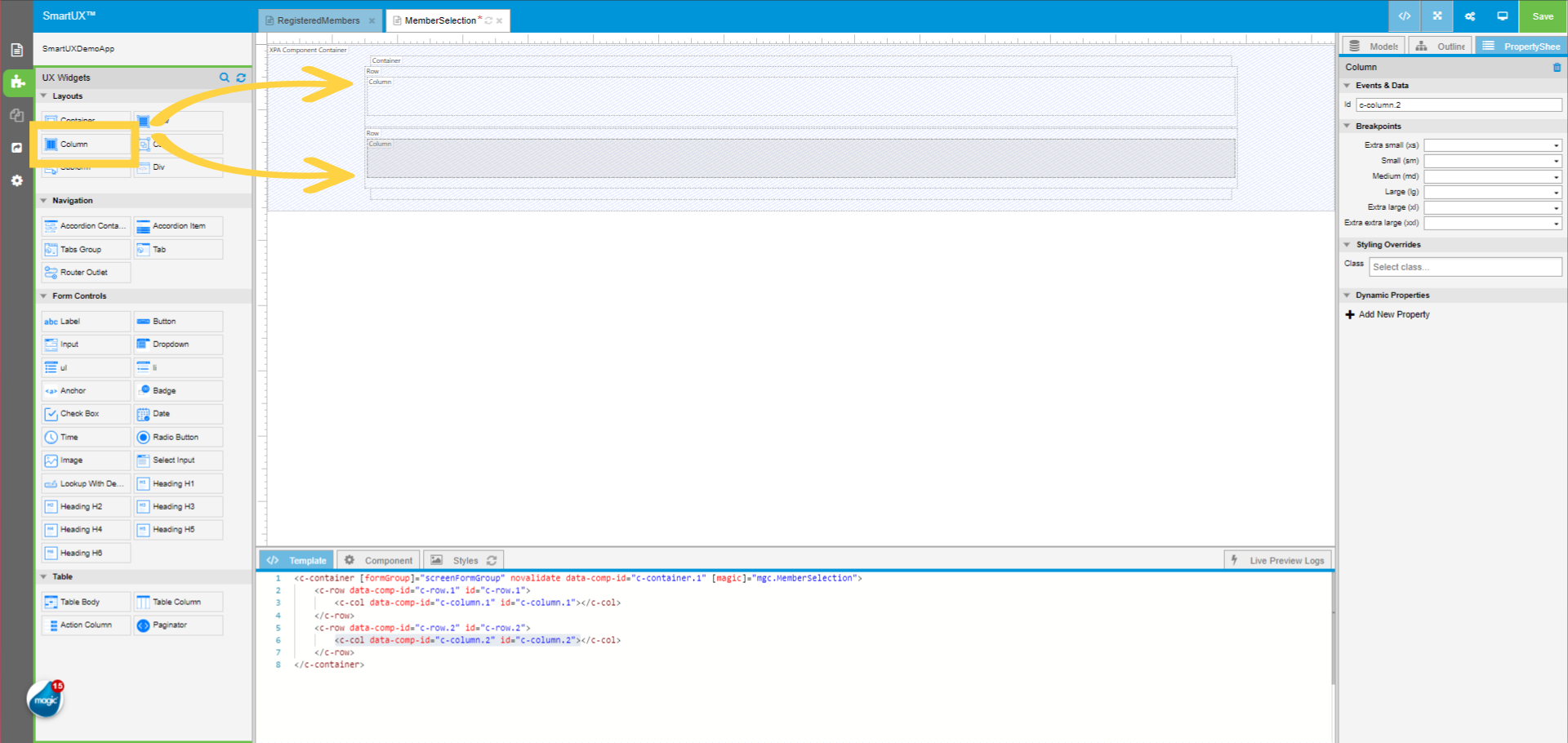

• Drag and drop a Column widget inside each Row widget.

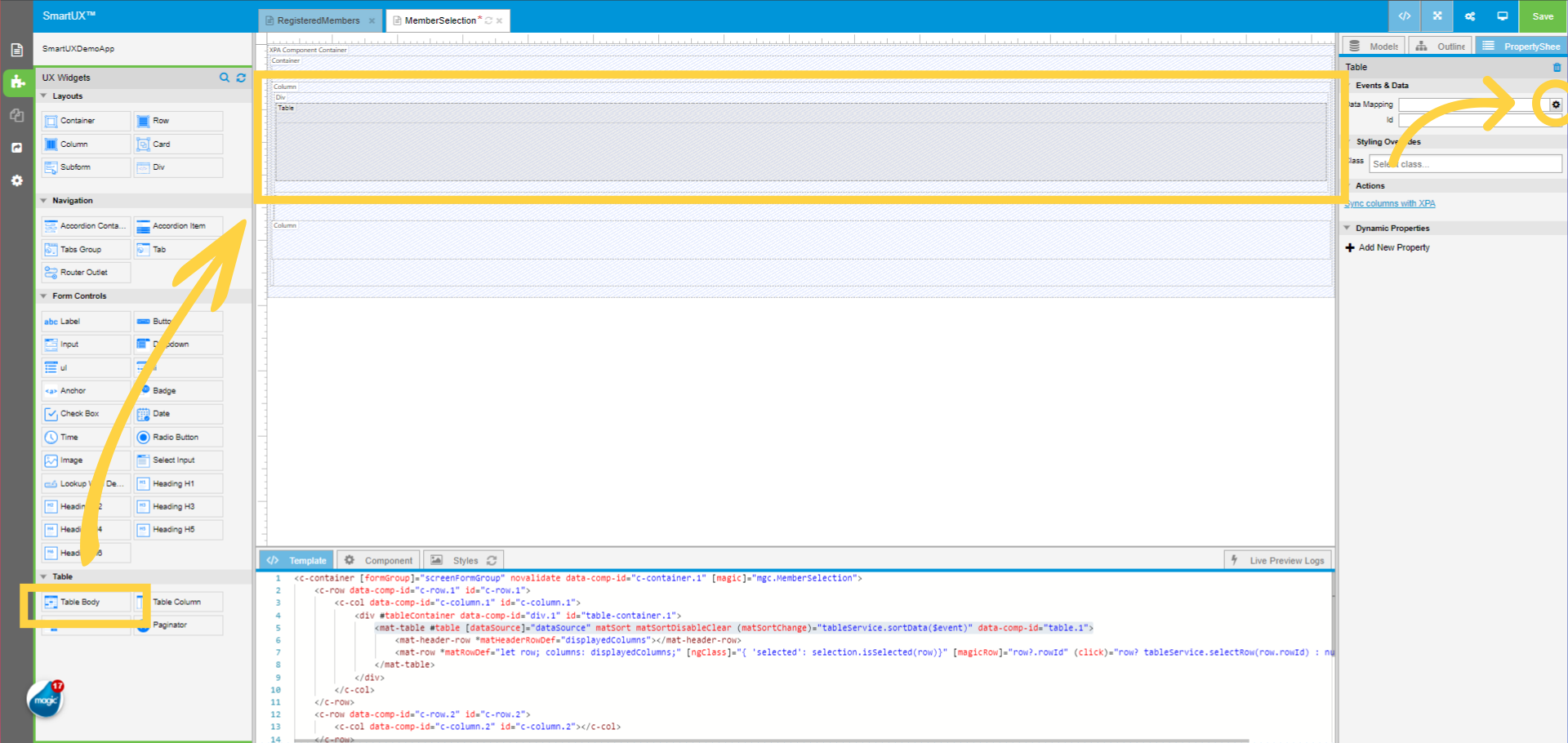

• Drag and drop the Table Body widget inside the first Column widget.
• Click on the Table on Canvas to see its properties sheet.
• In the properties sheet of the Table, click on the gear icon associated with the Data Mapping property.
• This will open the Select Data Model window.

• Select the Data Model “MemberSelectionTable” Table control.
• Click on the “Save” button to save the Data Mapping.
• To perform automated generation of the Table it is mandatory to map the Table widget with its correct Data Model.

• In the properties sheet of the Look for Actions section.
• The “Sync columns with XPA” Action property is an Action handler.
• This property is specially created to avoid manual work of end users for Table generation.

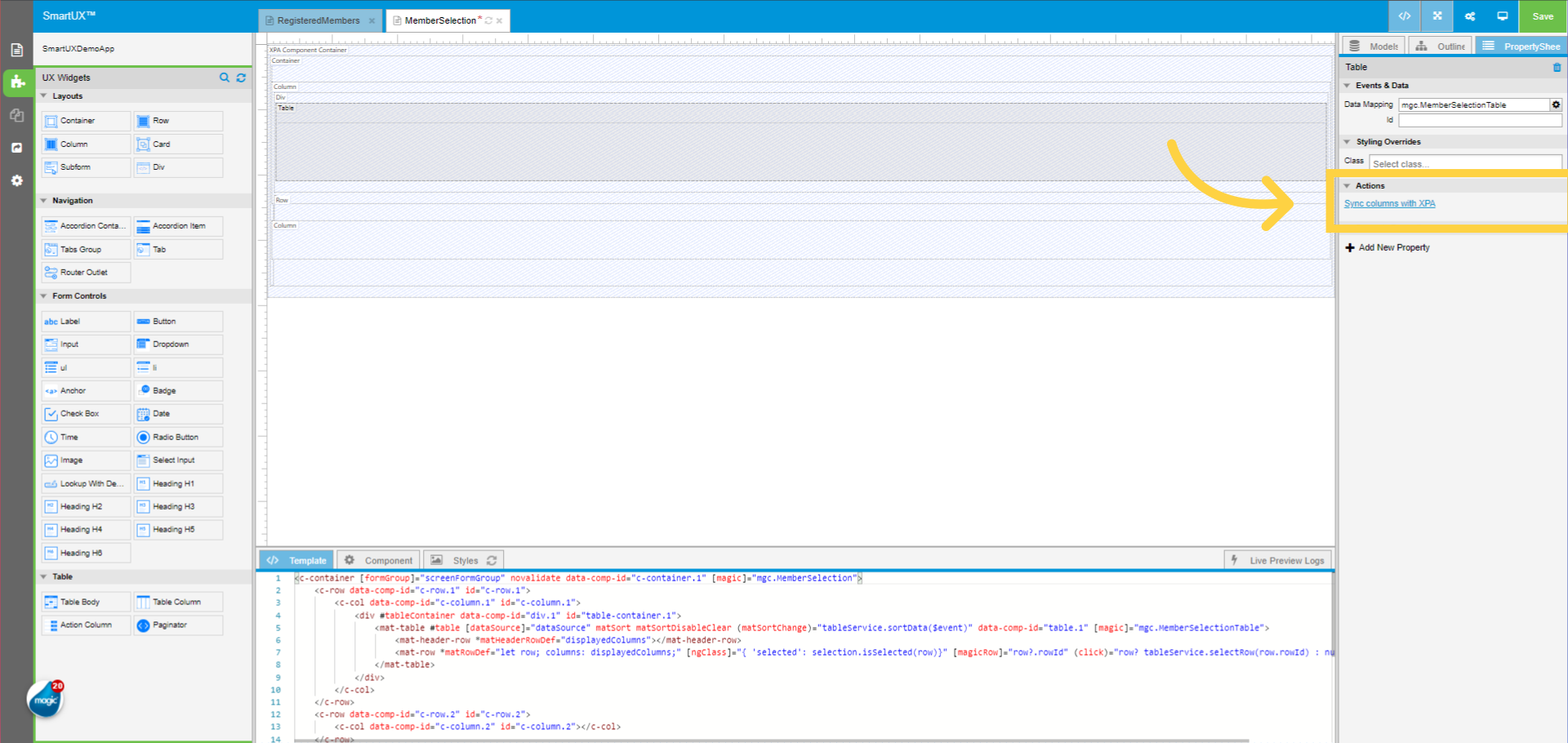

• Once you map the Data Model for the table click on the “Sync columns with XPA”.
• It will generate the Table for you.

• Here you can see the “Sync columns with XPA” property has fetched all the Columns present inside the MemberSelection Table.
• This Action handler also generated the widgets that are there on the Magic xpa form.
• This reduces the manual efforts of the end user and generates a Table on one click.
• Delete the input field from the second column as this table will be Read-Only.

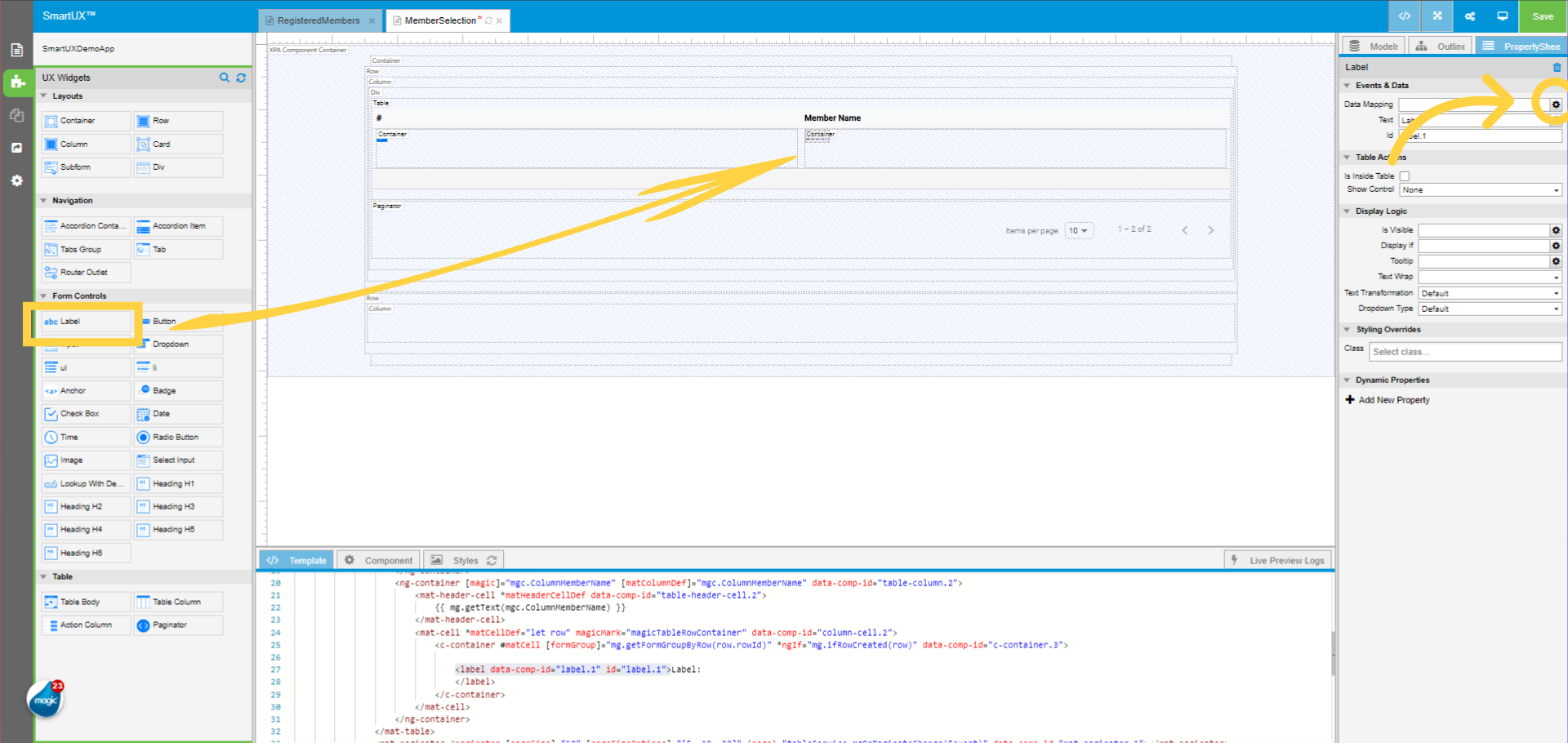

• Drag and drop the Label widget inside the Member Name column Container.
• In the Properties Sheet of Label click on the gear icon associated with the Data Mapping property.
• This will open a Select Data Model window.

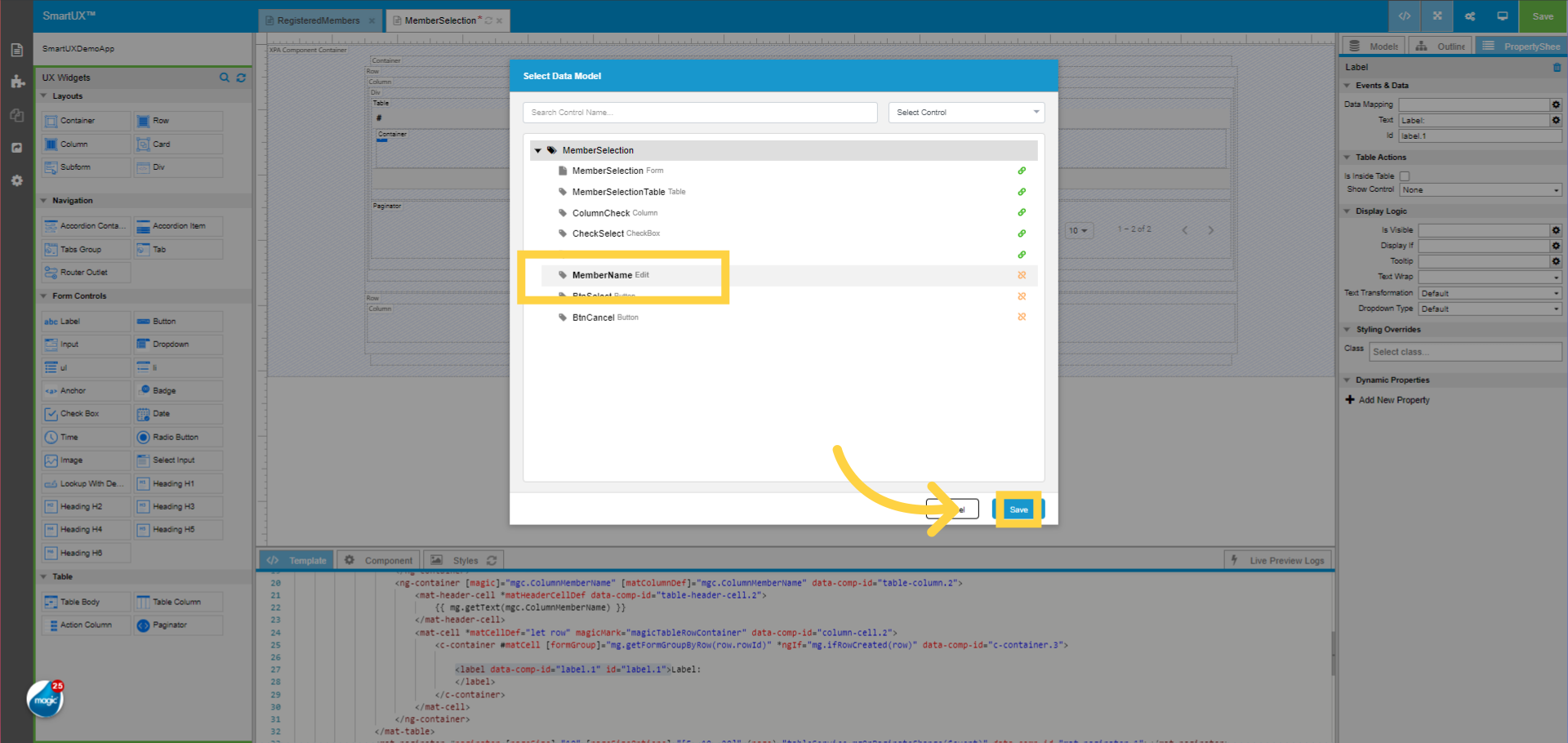

• Select “MemberName” Edit Data Model.
• Click on the Save button to save the mapping.

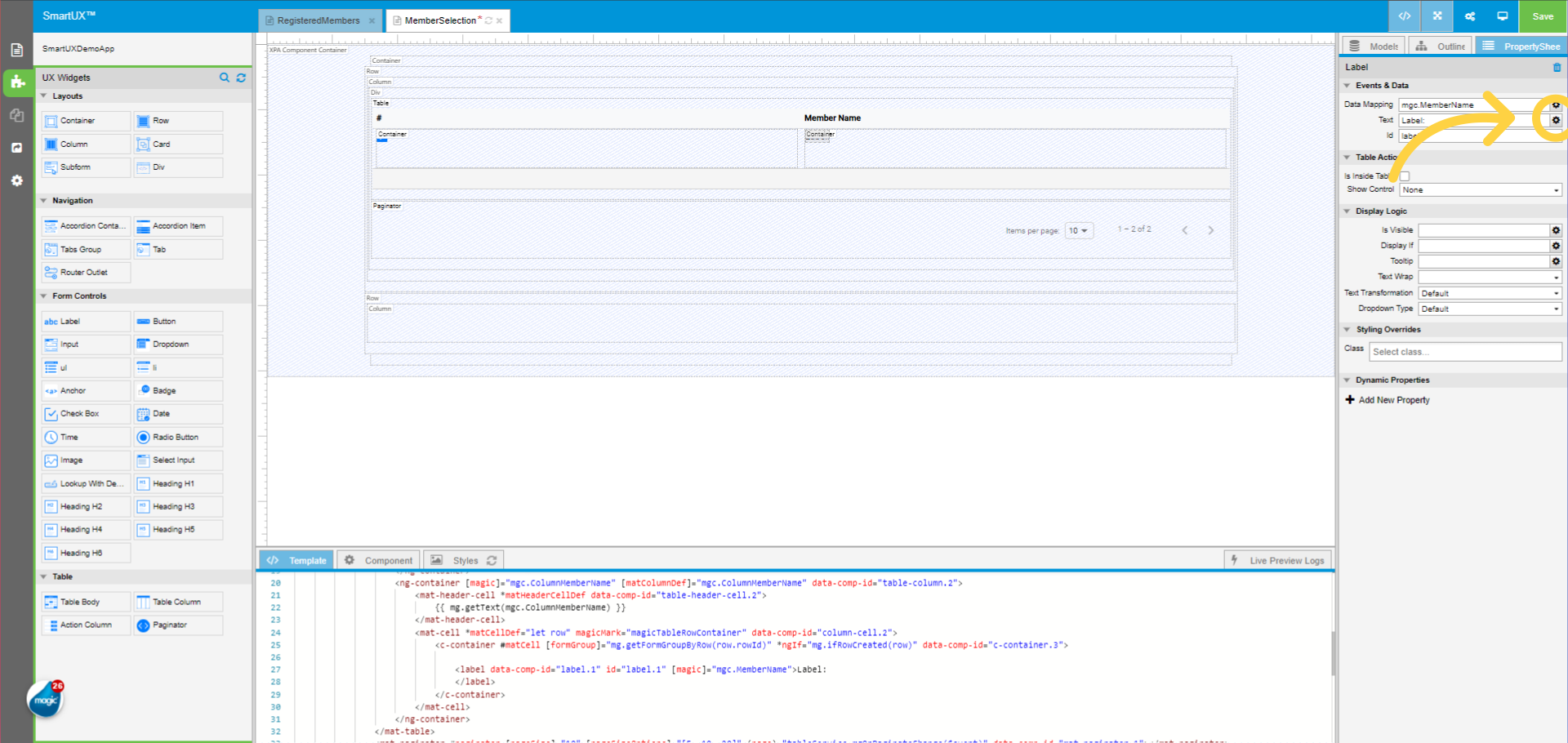

• In the Properties Sheet of Label click on the gear icon associated with the Text property.

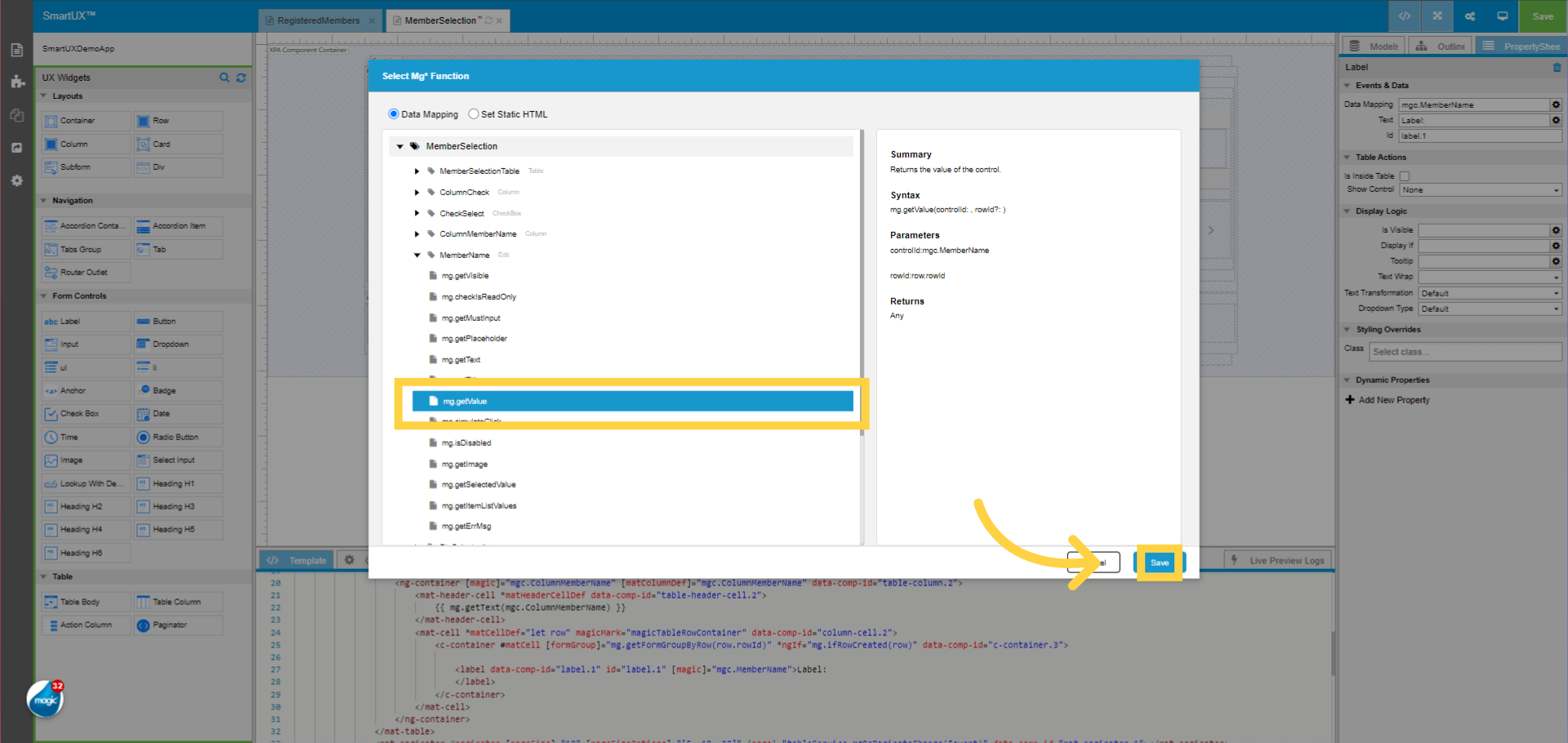

• This will open a Select Mg* Function window.

• Remove the existing text from the “Set Static HTML”.
• In the Select Mg* Function window select Data Mapping radio.
• Expand the MemberName (Edit).
• Select the “mg.getValue” function for the Label widget.
• Click on the Save button to map the function.

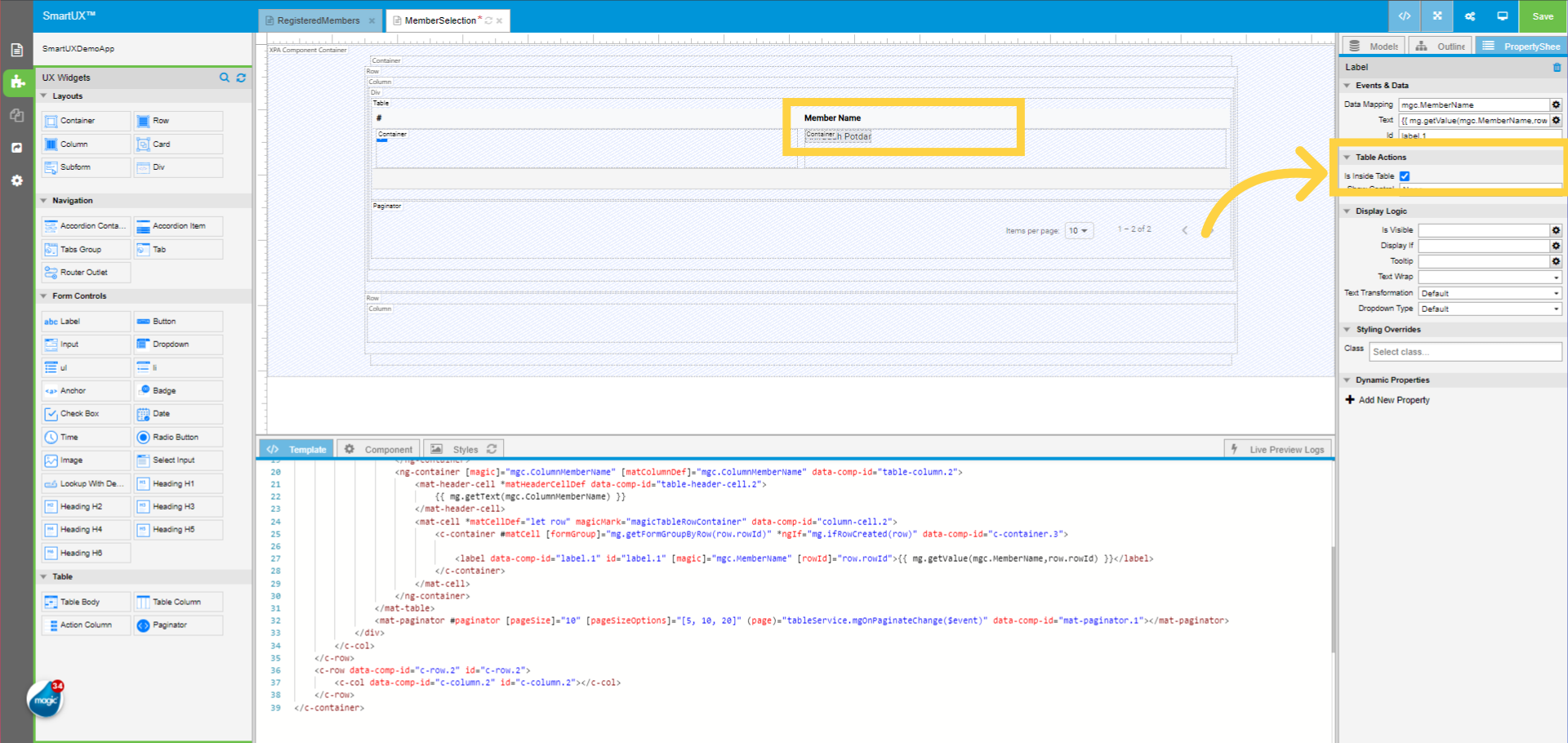

• Now in the Properties Sheet of the Label go to Table Actions section.
• Check the “Is Inside Table” property Checkbox.

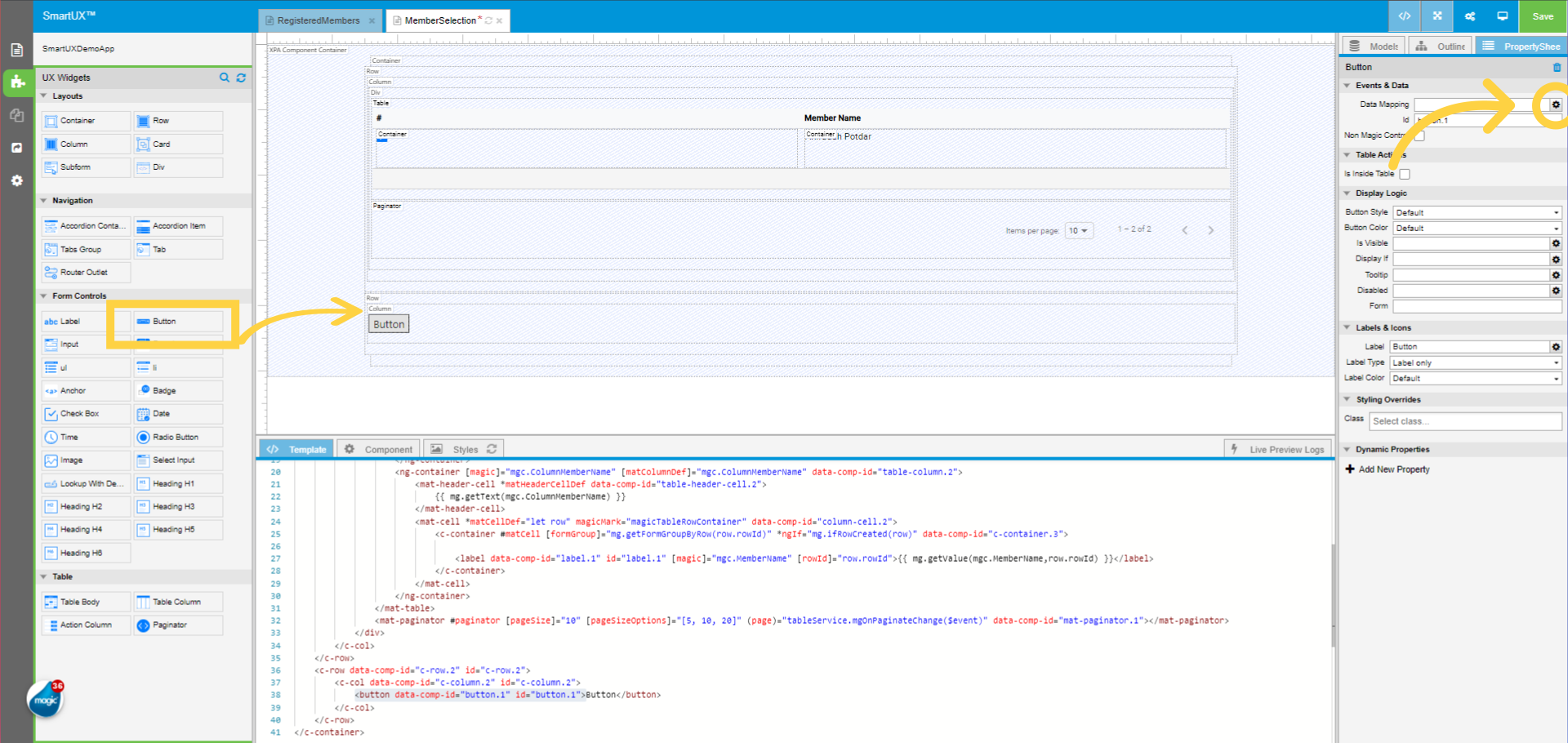

• Drag and drop the Button widget inside the Second Row Column.
• In the properties sheet of the Button widget, Click on the gear icon associated with the Data Mapping property.
• This will open the window to Select Data Model.

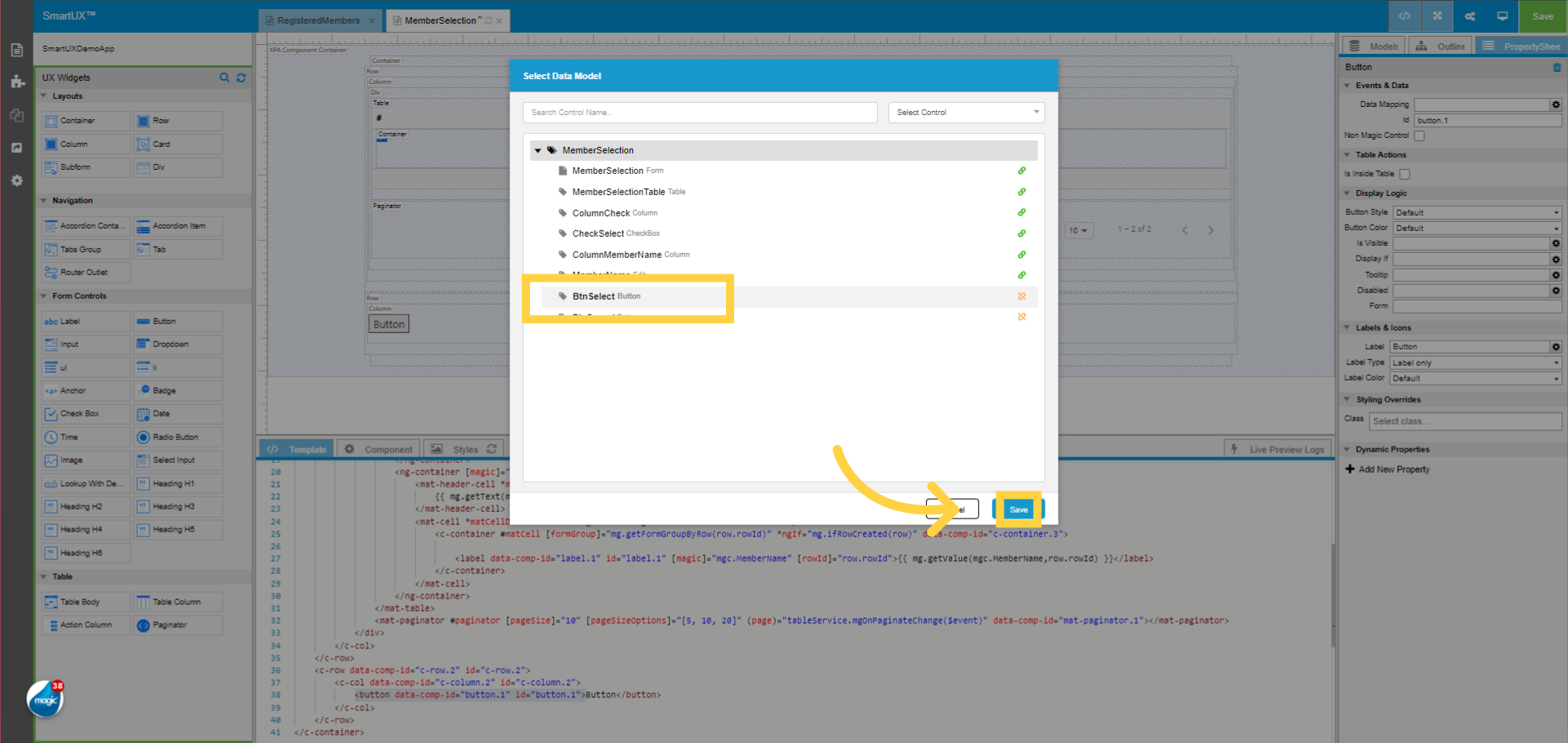

• Click on the BtnSelect data model to map it with the Button widget.
• Click on the Save button to confirm mapping.

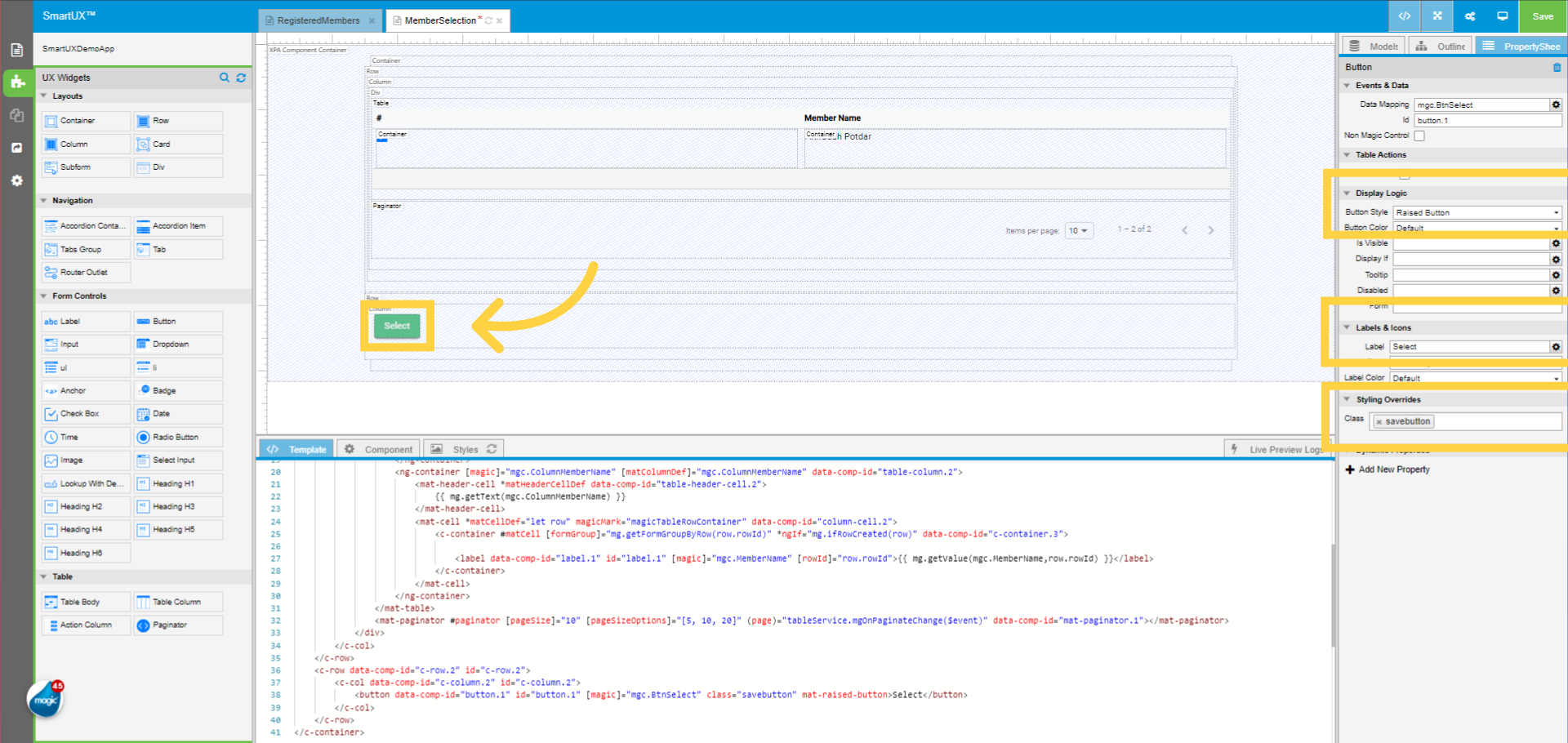

• In the Properties Sheet of the Select button widget.
• Under the “Display Logic” Section, set the “Button Style” property to “Raised Button”.
• Under the Labels & Icons section, input the “Label” property as “Select”.
• Fill in the Class property with the “savebutton”.

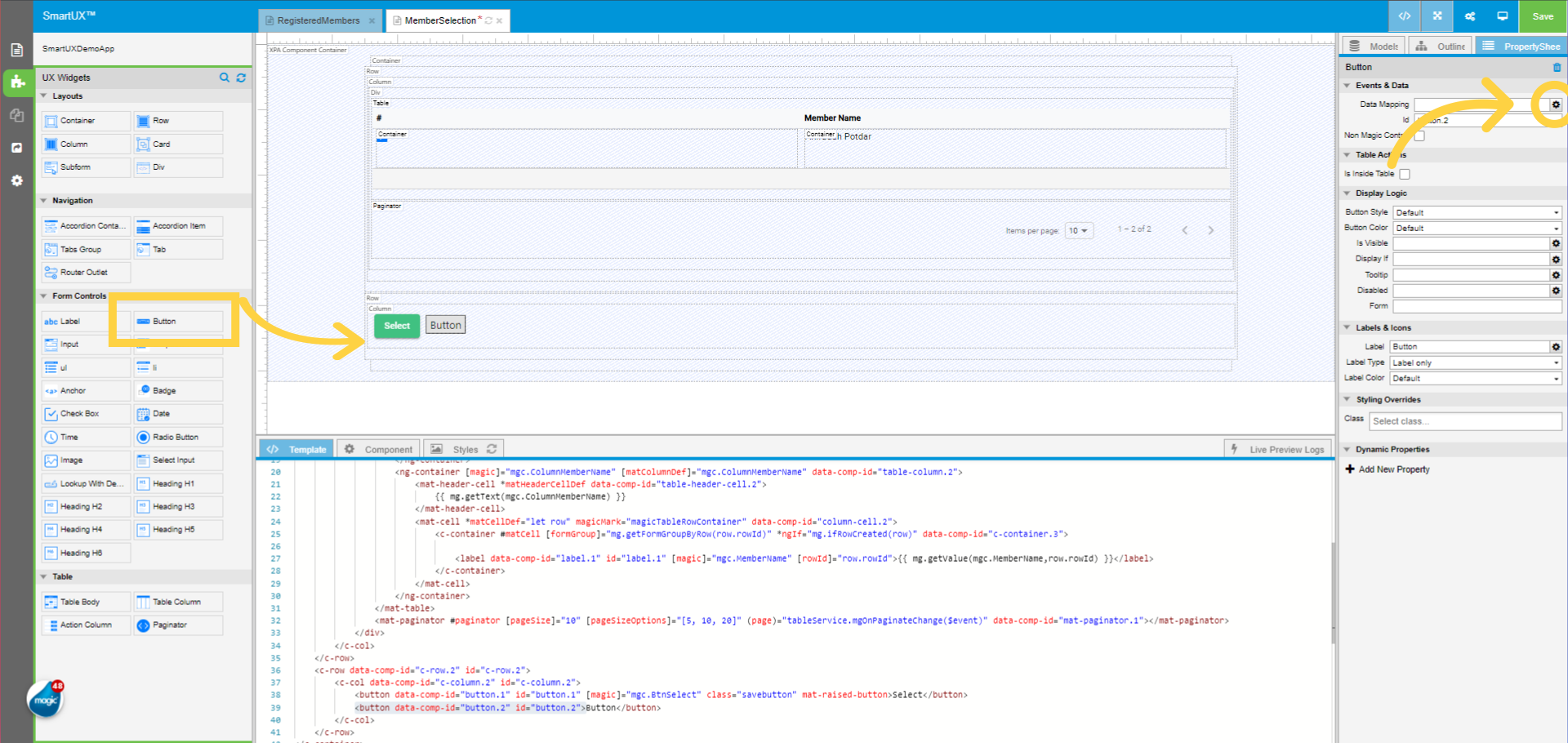

• Drag and drop another Button widget inside the Second Row Column.
• In the properties sheet of the Button widget, Click on the gear icon associated with the Data Mapping property.
• This will open the window to Select Data Model.

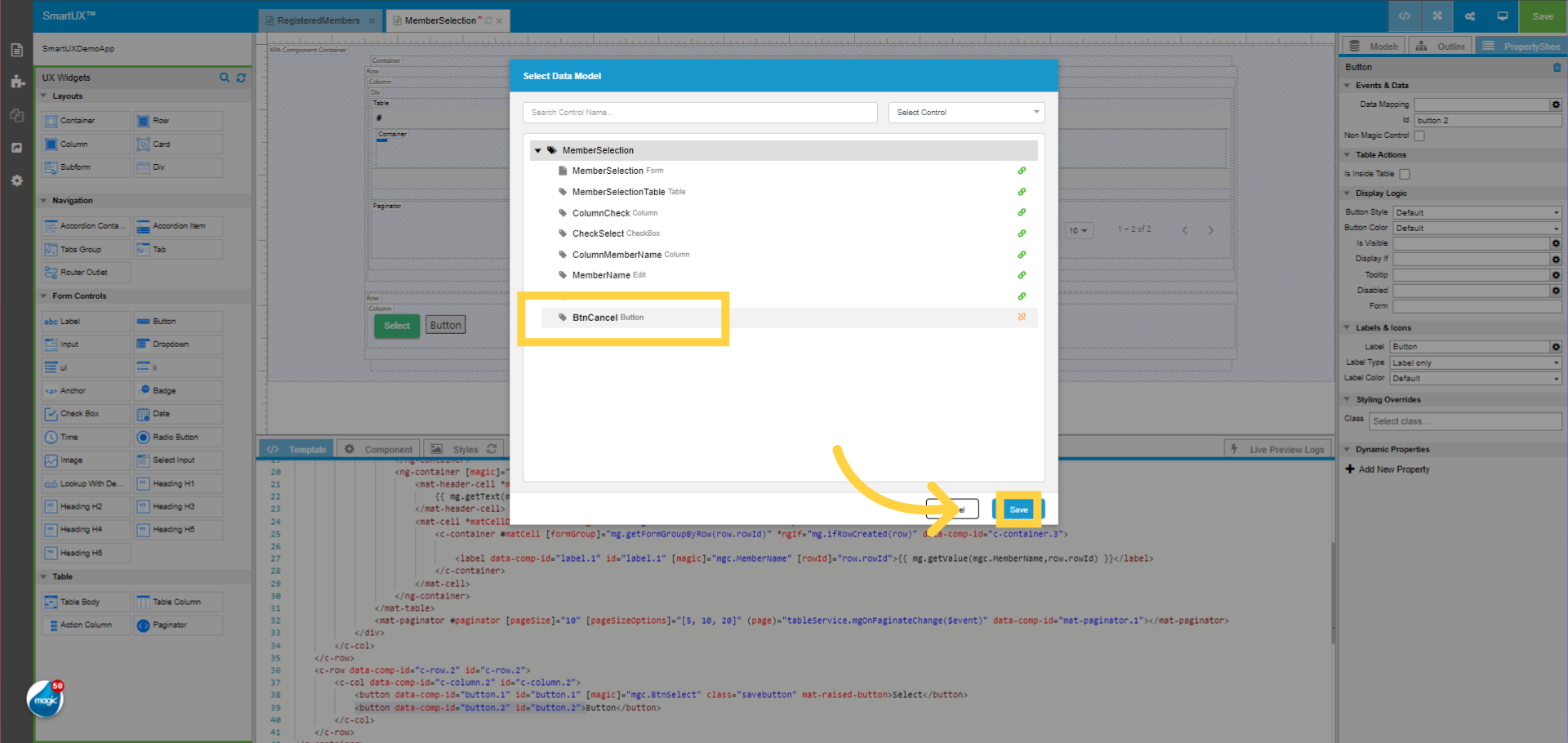

• Click on the BtnCancel data model to map it with the Button widget.
• Click on the Save button to confirm mapping.

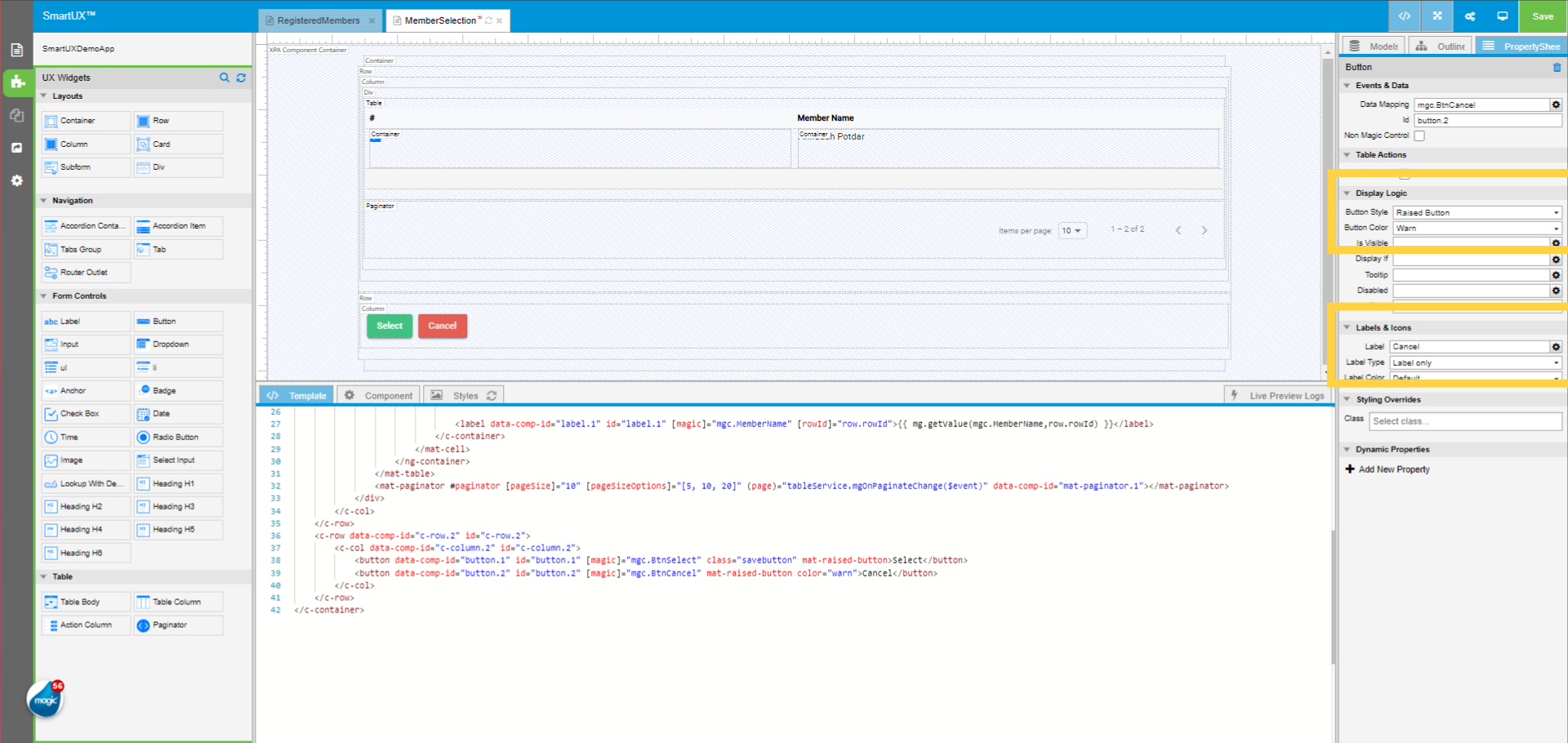

• In the Properties Sheet of the Cancel button widget.
• Under the “Display Logic” Section, set the “Button Style” property to “Raised Button”.
• Change the “Button Color” property to “warn”.
• Under the Labels & Icons section, input the “Label” property as “Cancel”.

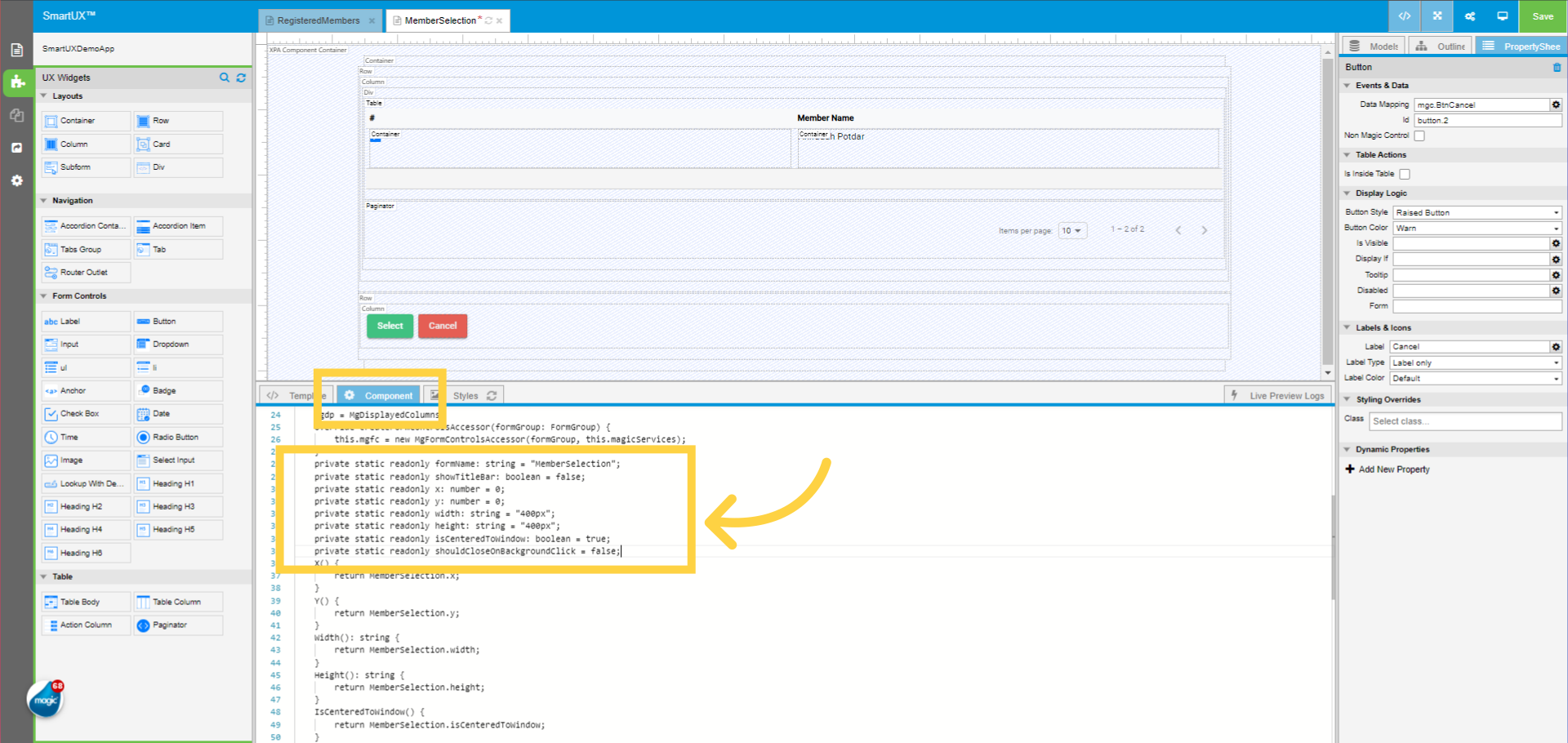

• Switch to the Component tab below the Canvas beside Template.
• In the Component tab, you will observe the contents of the MemberSelection.component.ts file.
• Change to values as shown below:
  • • private static readonly showTitleBar: boolean = false;
    • private static readonly width: string = “400px”;
    • private static readonly height: string = “400px”;
    • private static readonly shouldCloseOnBackgroundClick = false;

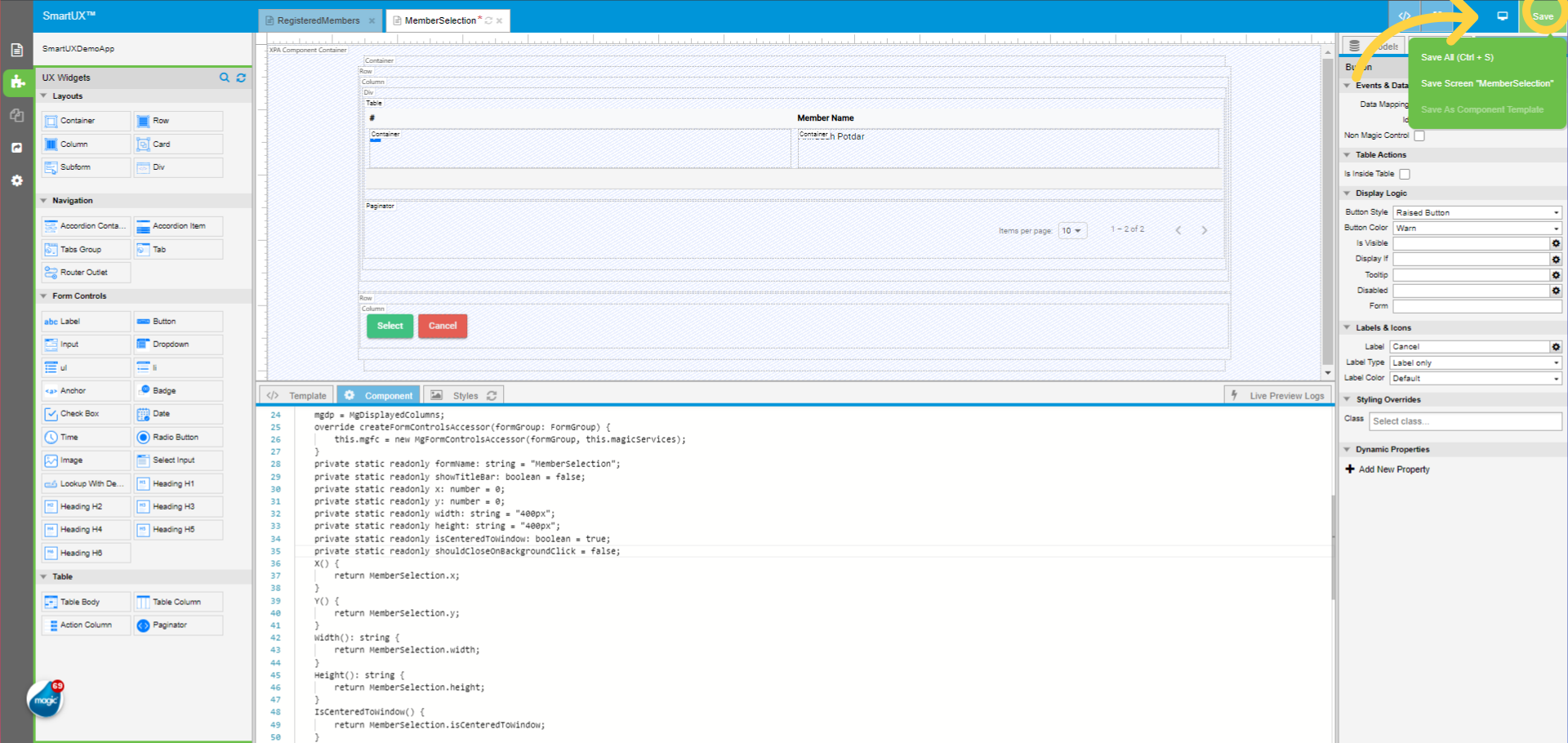

• Click the Save button to Save all performed actions for the Member Selection component.

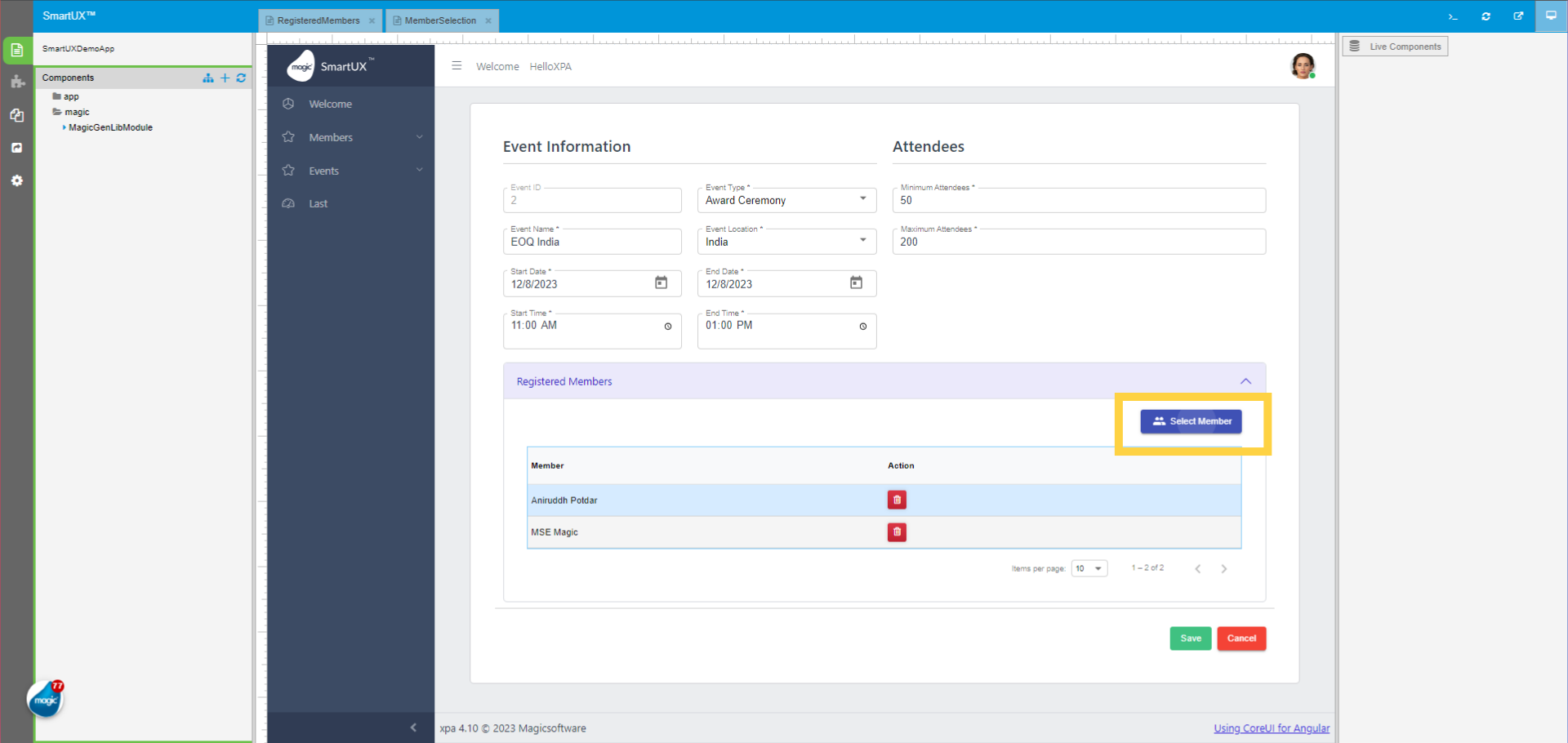

• Now enter in Live Preview.

• Navigate through the navigation sidebar to Event.
• Click on Edit Event to enter in Event Card component.
• Now Click on the Select Member button to see the designed Member Selection component.

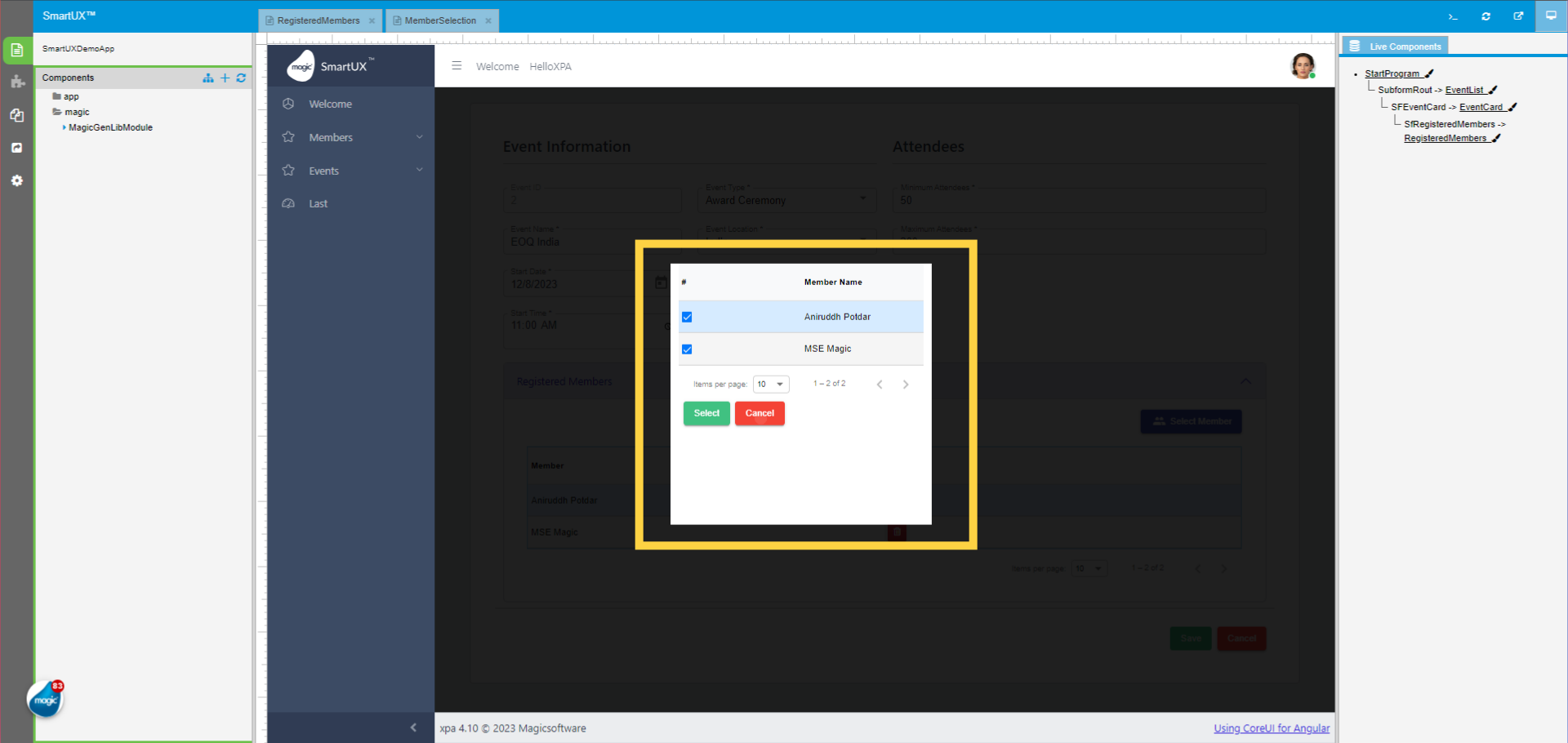

• Here you see the Member Selection component in Live Preview as an overlay to add and select Members for Event.
